Dresden ElektronikGermany

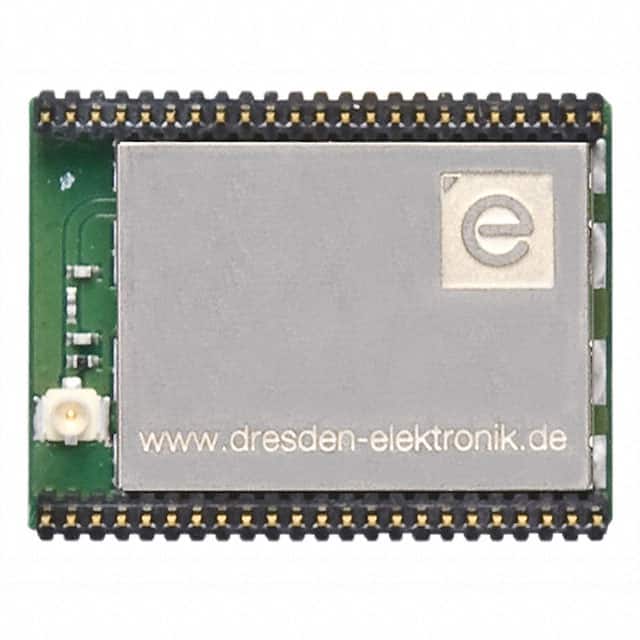

RF TXRX MODULE 802.15.4 U.FL TH
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Receiving | 45mA |
| Current - Transmitting | 45mA |
| Power - Output | 10dBm |
| Voltage - Supply | 3V ~ 3.6V |
| AC and DC characteristics | |
| Frequency | 2.4GHz |
| Environment and package | |
| Memory Size | - |
| Mounting Type | Through Hole |
| Operating Temperature | -40°C~85°C |
| Package | Bulk |
| Package / Case | 46-DIP Module (0.800", 20.32mm) |
| Other | |
| Antenna Type | Antenna Not Included, U.FL |
| Data Rate | 1Mbps |
| Mfr | Dresden Elektronik |
| Modulation | - |
| Product Status | Obsolete |
| Protocol | 6LoWPAN, Zigbee® |
| RF Family/Standard | 802.15.4 |
| Sensitivity | -110dBm |
| Serial Interfaces | I²C, JTAG, SPI, UART, USB |
| Series | - |
| Utilized IC / Part | MKW22D512V |
Documents
No documents are linked to this part yet.
