WAGO CorporationGermany

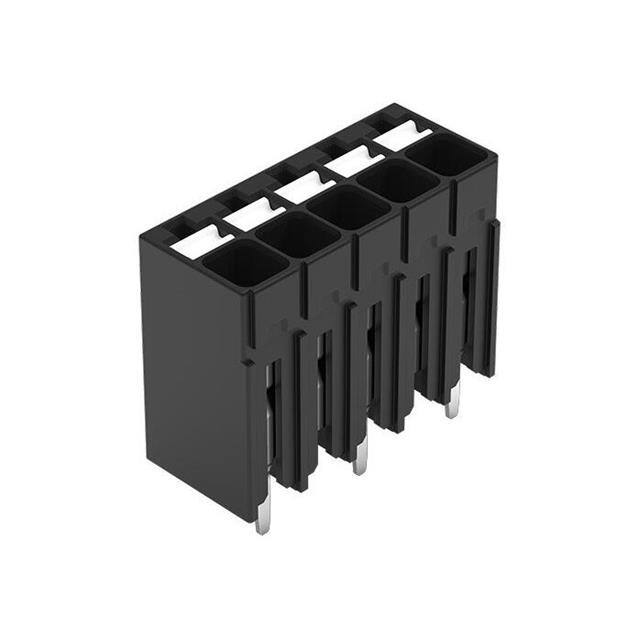

TERM BLK 5P TOP ENTRY 3.5MM PCB
All alternatives
View full reportTechnical parameters
Key specs
Pitch3.5 mm
| Power | |
|---|---|
| Current | 10 A |
| Voltage | 300 V |
| Environment and package | |
| Mounting Type | Through Hole |
| Operating Temperature | -60°C~105°C |
| Package | Tray |
| Other | |
| Clamp Material - Plating | Steel - Nickel Plated |
| Color | Black |
| Contact Material - Plating | Electrolytic Copper - Tin Plated |
| Features | Push Button Actuated |
| Housing Material | Polyphthalamide (PPA), Glass Filled |
| Mating Orientation | Vertical with Board |
| Mfr | WAGO Corporation |
| Number of Levels | 1 |
| Pitch | 0.138" (3.50mm) |
| Positions Per Level | 5 |
| Product Status | Active |
| Screw Material - Plating | - |
| Screw Thread | - |
| Series | 2086 |
| Torque - Screw | - |
| Wire Gauge | 16-24 AWG |
| Wire Termination | Screwless - Push Button Clamp |
