NXP USA Inc.Netherlands
DIODE ARRAY SCHOTTKY 40V SC75
All alternatives
View full reportTechnical parameters
| Power | |
|---|---|
| Current - Average Rectified (Io) (per Diode) | 120mA (DC) |
| Current - Reverse Leakage @ Vr | 10 µA @ 40 V |
| Voltage - DC Reverse (Vr) (Max) | 40 V |
| Voltage - Forward (Vf) (Max) @ If | 1 V @ 40 mA |
| Environment and package | |
| Mounting Type | Surface Mount |
| Operating Temperature - Junction | 150°C(Max) |
| Package | Tape & Reel (TR) |

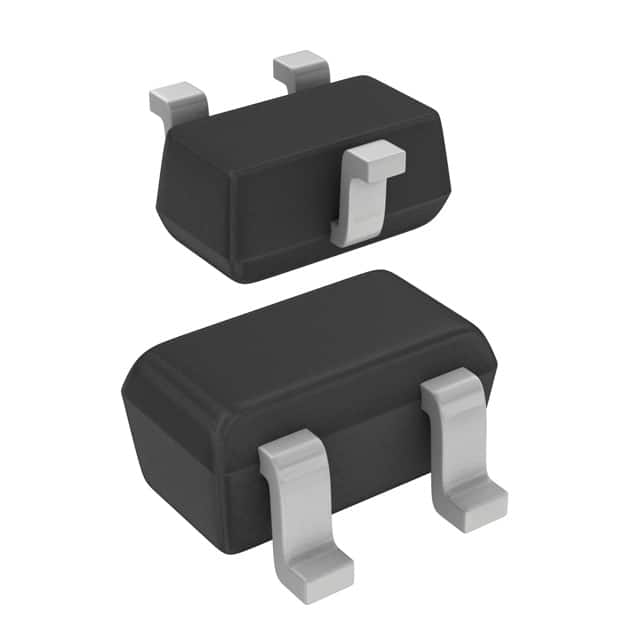

| Package / Case | SC-75, SOT-416 |
| Supplier Device Package | SC-75 |
| Other | |
| Base Product Number | 1PS75 |
| Diode Configuration | 1 Pair Common Cathode |
| Diode Type | Schottky |
| Mfr | NXP USA Inc. |
| Product Status | Obsolete |
| Series | - |
| Speed | Small Signal =< 200mA (Io), Any Speed |
