搜索结果：TXS0104

适用于漏极开路和推挽应用的 4 位双向多电压电平转换器

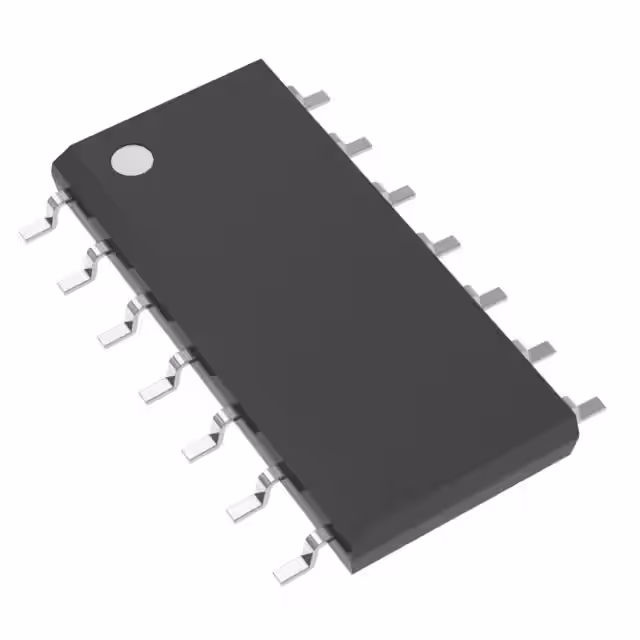

IC TRANSLTR BIDIRECTIONAL 14SOIC

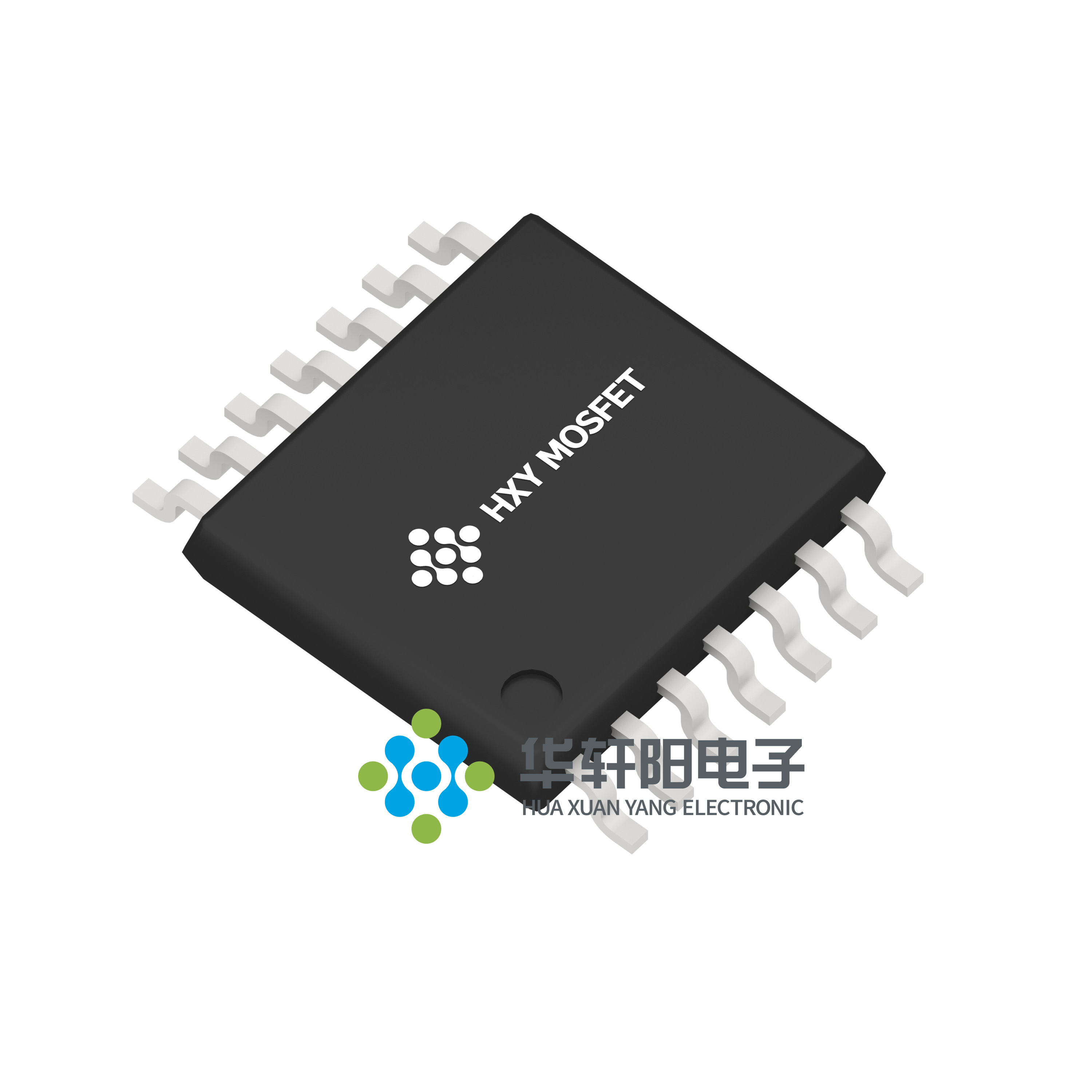

IC TRANSLATOR BIDIR 14TSSOP

IC TRANSLTR BIDIRECTIONAL 12BGA

IC TRANSLATOR BIDIR 12NFBGA

IC TRANSLTR BIDIRECTIONAL 14VQFN

IC TRANSLTR BIDIRECTIONAL 12BGA

IC TRANSLTR BIDIRECTIONAL 14VQFN

This 4-bit non-inverting translator uses two separate configurable power-supply rails. The A port is designed to track VCCA. VCCA accepts any supply voltage from 1.65V to 3.6V. VCCA must be less than or equal to VCCB. The B port is designed to track VCCB. VCCB accepts any supply voltage from 2.3V to 5.5V. This allows for low-voltage bidirectional translation between any of the 1.8V, 2.5V, 3.3V, and 5V voltage nodes. When the output-enable (OE) input is low, all outputs are placed in the high-impedance state. The TXS0104V is designed so that the OE input circuit is supplied by VCCA. For the high-impedance state during power up or power down, tie OE to GND through a pull-down resistor; the current-sourcing capability of the driver determines the minimum value of the resistor.

The TXS0104W is a 4-bit non-inverting translator, which uses two separate configurable power-supply rails. The A port is designed to track VCCA. VCCA accepts any supply voltage from 1.2V to 3.6V. The B port is designed to track VCCB. VCCB accepts any supply voltage from 1.65V to 5.5V. This allows for low-voltage bidirectional translation between any of the 1.2V, 1.8V, 2.V, 3.3V, and 5V voltage nodes. When the output-enable (OE) input is low, all outputs are placed in the high-impedance state. The TXS0104W is designed so that the OE input circuit is supplied by VCCA. For the high-impedance state during power up or power down, tie OE to GND through a pull-down resistor. The minimum value of the resistor is determined by the current-sourcing capability of the driver.

IC TRANSLTR BIDIRECTIONAL 14SOIC

IC TRANSLTR BIDIRECTIONAL 14SOIC

The TXS0104E-Q1 device connects an incompatible logic communication from chip-to-chip due to voltage mismatch. This auto-direction translator can be conveniently used to bridge the gap without the need of direction control from the host. Each channel can be mixed and matched with different output types (open-drain or push-pull) and mixed data flows (transmit or receive) without intervention from the host. This 4-bit noninverting translator uses two separate configurable power-supply rails. The A and B ports are designed to track VCCA and VCCB respectively. The VCCB pin accepts any supply voltage from 2.3 V to 5.5 V while the VCCA pin accepts any supply voltage from 1.65 V to 3.6 V such that VCCA is less than or equal to VCCB. This tracking allows for low-voltage bidirectional translation between any of the 1.8-V, 2.5-V, 3.3-V, and 5-V voltage nodes. When the output-enable (OE) input is low, all outputs are placed in the high-impedance state. The TXS0104E-Q1 device is designed so that the OE input circuit is supplied by VCCA. To be in the high-impedance state during power up or power down, the OE pin must be tied to the GND pin through a pull down resistor; the minimum value of the resistor is determined by the current-sourcing capability of the driver.

这款转换器/电平移位器支持双向通道操作，确保了数据传输速率可达24Mbps的高效性能。它设计用于连接不同电压逻辑电平的数字电路，其中VCCA端口的工作电压范围为1.65V至3.6V，而VCCB端口则能处理从2.3V到5.5V的输入电压。此特性使其成为在多电压系统环境中实现稳定信号传输的理想选择。适用于需要精确电压转换和保持信号完整性的应用场合，例如在低功耗设备与高性能计算平台之间的接口设计。该器件通过提供可靠的数据传输解决方案，简化了复杂电子系统的集成挑战。

TXS0104ERGY

This 4-bit non-inverting translator uses two separate configurable power-supply rails. The A port is designed to track VCCA. VCCA accepts any supply voltage from 1.65V to 3.6V. VCCA must be less than or equal to VCCB. The B port is designed to track VCCB. VCCB accepts any supply voltage from 2.3V to 5.5V. This allows for low-voltage bidirectional translation between any of the 1.8V, 2.5V, 3.3V, and 5V voltage nodes. When the output-enable (OE) input is low, all outputs are placed in the high-impedance state. The TXS0104V-Q1 is designed so that the OE input circuit is supplied by VCCA. For the high-impedance state during power up or power down, tie OE to GND through a pull-down resistor; the current-sourcing capability of the driver determines the minimum value of the resistor.

TXS0104VPWR

The TXS0104W-Q1 device connects an incompatible logic communication from chip-to-chip due to voltage mismatch. This auto-direction translator is used to bridge the gap without the need of direction control from the host. Each channel can be mixed and matched with different output types (open-drain or push-pull) and mixed data flows (transmit or receive) without intervention from the host. This 4-bit noninverting translator uses two separate configurable power-supply rails. The A and B ports are designed to track VCCA and VCCB respectively. The VCCB pin accepts any supply voltage from 1.65V to 5.5V. The VCCA pin accepts any supply voltage from 1.2V to 3.6V such that VCCA is less than or equal to VCCB. This tracking allows for low-voltage bidirectional translation between any of the 1.8V, 2.5V, 3.3V, and 5V voltage nodes. When the output-enable (OE) input is low, all outputs are placed in the high-impedance state. The TXS0104W-Q1 device is designed so that the OE input circuit is supplied by VCCA. To be in the high-impedance state during power up or power down, the OE pin must be tied to the GND pin through a pull down resistor. The minimum value of the resistor is determined by the current-sourcing capability of the driver.
