搜索结果：SN74LVC1G123

The SN74LVC1G123 device is a single retriggerable monostable multivibrator designed for 1.65V to 5.5V VCC operation. This monostable multivibrator features output pulse-duration control by three methods. In the first method, the A input is low, and the B input goes high. In the second method, the B input is high, and the A input goes low. In the third method, the A input is low, the B input is high, and the clear ( CLR) input goes high. The output pulse duration is programmed by selecting external resistance and capacitance values. The external timing capacitor must be connected between Cext and Rext/Cext (positive) and an external resistor connected between Rext/Cext and VCC. To obtain variable pulse durations, connect an external variable resistance between Rext/Cext and VCC. The output pulse duration also can be reduced by taking CLR low. Pulse triggering occurs at a particular voltage level and is not directly related to the transition time of the input pulse. The A and B inputs have Schmitt triggers with sufficient hysteresis to handle slow input transition rates with jitter-free triggering at the outputs.

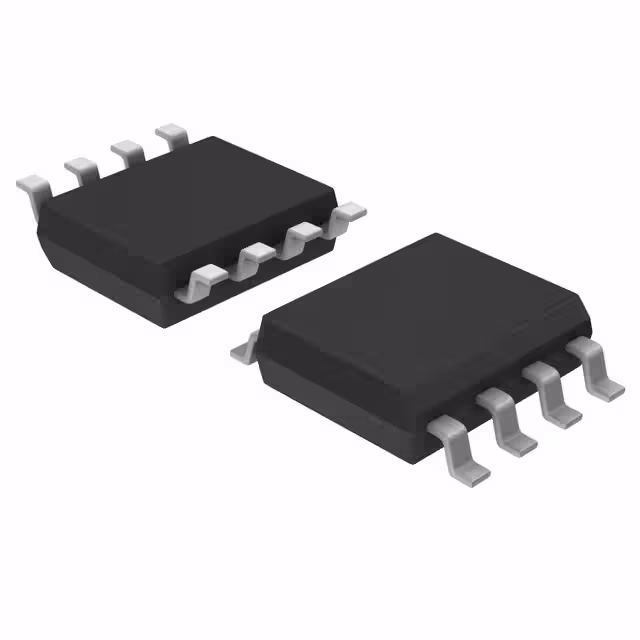

IC MULTIVIBRATOR 18.5NS SM8

IC MULTIVIBRATOR 18.5NS SM8

IC MULTIVIBRATOR 18.5NS 8VSSOP

IC MULTIVIBRATOR 18.5NS 8VSSOP

IC MULTIVIBRATOR 18.5NS 8VSSOP

IC MULTIVIBRATOR 18.5NS 8DSBGA
