静电和浪涌保护(TVS/ESD)

静电保护二极管（ESD）

本元器件专为保护电子设备免受静电和浪涌影响而设计，具备46.6A的高电流承载能力和7.5V的工作电压。采用单通道Uni单向结构，确保稳定可靠的性能。适用于多种电子系统，为您的设备提供坚实的安全保障。

400 W Transient Voltage Suppressor

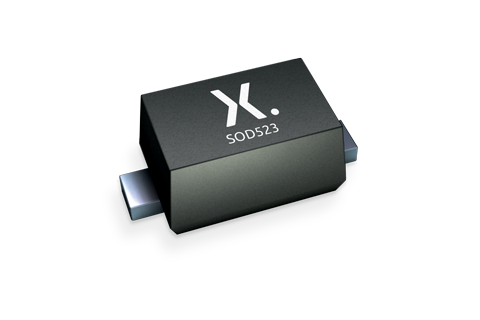

ESD protection diode in SOD523 package

Low capacitance bidirectional ESD protection diode

Low capacitance unidirectional fivefold ESD protection diode arrays

NRND = Not Recommended for New Design

1500W Transient Voltage Suppressor

The ESD7L5.0DT5G is designed to protect voltage sensitive components from damage due to ESD in applications that require ultra low capacitance to preserve signal integrity. Excellent clamping capability, low leakage and fast response time are combined with an ultra low diode capacitance of 0.5 pF to provide best in class protection from IC damage due to ESD. The ultra small SOT-723 package is ideal for designs where board space is at a premium. The ESD7L5.0DT5G can be used to protect two uni-directional lines or one bi-directional line. When used to protect one bi-directional line, the effective capacitance is 0.25 pF. Because of its low capacitance, it is well suited for protecting high frequency signal lines such as USB2.0 high speed and antenna line applications. Product services, tools and other useful resources related to ESD7L Find and compare products, get support and connect with onsemi sales team. Note: The temperature and confidence level may be adjusted to your requirements. Disclaimer: A reliability FIT rate calculated using this tool shall not be used for any functional safety purpose. In case a raw FIT rate needs to be estimated for a component which is targeted to be used in a safety critical application (i.e. compliant to ISO 26262 standard) it should be calculated according to generic safety standards (IEC62380, IEC61709, SN29500, FIDES, etc.)

The SMBJ series is designed to protect sensitive equipment against electrostatic discharges according to IEC 61000-4-2 and MIL STD 883, method 3015, and...

The SMBJ series is designed to protect sensitive equipment against electrostatic discharges according to IEC 61000-4-2 and MIL STD 883, method 3015, and...

单线路双向瞬态电压抑制二极管，超小封装、低电容、低泄漏、低钳位电压，2引脚无铅封装，符合多项标准

SMBJ20A
