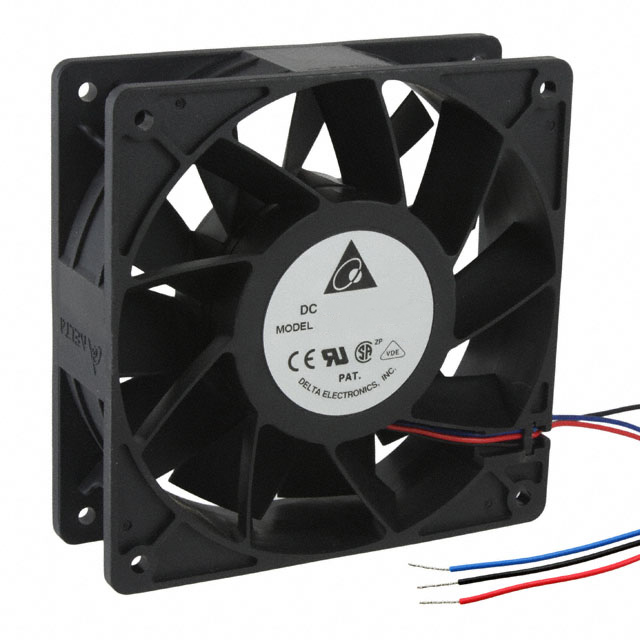

FAN AXIAL 120X38MM 24VDC WIRE
全部替代型号
查看完整报告技术参数
| 电源 | |
|---|---|
| Current Rating (Amps) | 2.00A |
| Power (Watts) | 48 W |
| Voltage Range | 14 ~ 26.5VDC |
| Voltage - Rated | 24VDC |
| 交流 / 直流特性 | |
| Noise | 66.5dB(A) |
| 环境与封装 | |
| Lifetime @ Temp. | 70000 Hrs @ 40°C |
| Operating Temperature | 14 ~ 140°F (-10 ~ 60°C) |
| Package | Box |
| Size / Dimension | Square - 120mm L x 120mm H |
| 其他 | |
| Air Flow | 252.9 CFM (7.08m³/min) |
| Approval Agency | CE, CSA, UL, VDE |
| Base Product Number | PFB1224 |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Features | Locked Rotor Sensor |
| Ingress Protection | - |
| Material - Blade | Plastic |
| Material - Frame | Plastic |
| Mfr | Delta Electronics |
| Product Status | Active |
| RPM | 5500 RPM |
| Series | PFB |
| Static Pressure | 1.412 in H2O (351.7 Pa) |
| Termination | 3 Wire Leads |
| Weight | 0.838 lb (380.11 g) |
| Width | 38.00mm |
